SFX brand Tap buster machine electrical discharge machine from manufacturer

  • 1 - 1 Pieces
    $1,580.00
  • >=2 Pieces
    $1,422.00
Model Number:
EDM-8C
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 2 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
Normal
Place of Origin:
Henan, China (Mainland)
Brand Name:
SFX
Voltage:
110V/220V
Power(W):
800W
Dimension(L*W*H):
498*308*392mm
Weight:
18kg
Certification:
CE ISO
Warranty:
1 Year
Product name:
Screw Tap Extractor
Color:
Yellow
Electrode Chuck Diameter(mm):
0.8-10mm
Max Processing Depth:
70mm
Max Processing Speed(mm/min):
1mm/min
Working Liquid:
Tap Water
Gross Weight:
18kg
Set Depth:
Alarm Automatically at certain depth
Power Box Size(mm):
380*160*300mm
Packing Size(mm):
498*308*392mm
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
300 Piece/Pieces per Month Screw Tap Extractor, remove broken taps, screws, bolts machine,
Packaging & Delivery
Packaging Details
The inner is EPE Foam, and the outer is Thickened carton for SFX brand Portable EDM
Port
Shanghai/Beijing
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 2 To be negotiated
Video Description
Product Description

why chose us?


SFX brand Tap buster machine electrical discharge machine from manufacturer

1. Self-operated factory Independent export,

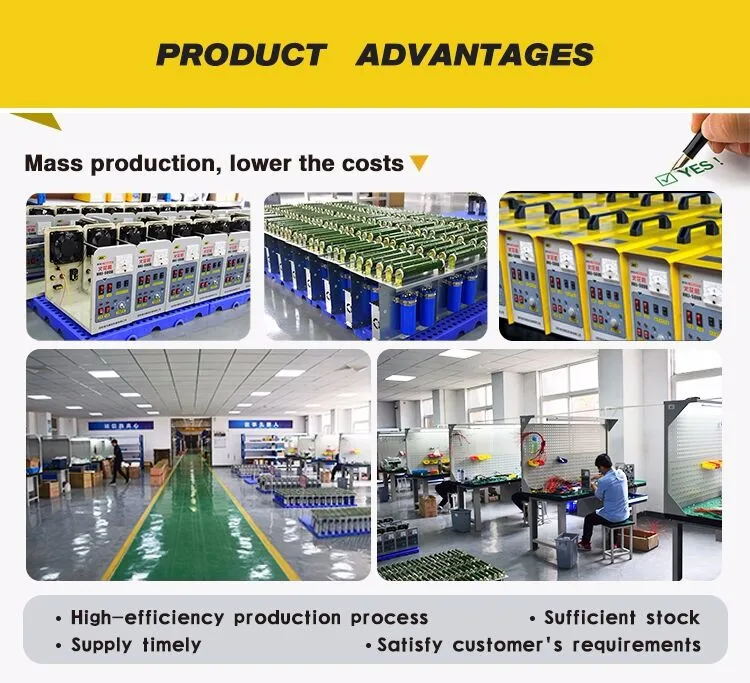

2. Mass production, lower the costs,
3. High-efficiency production process,
4. Sufficient stock,
5. Supply timely,
6. Satisfy customer's requirements,

7. Free electrodes be offered,

8.1 year warranty

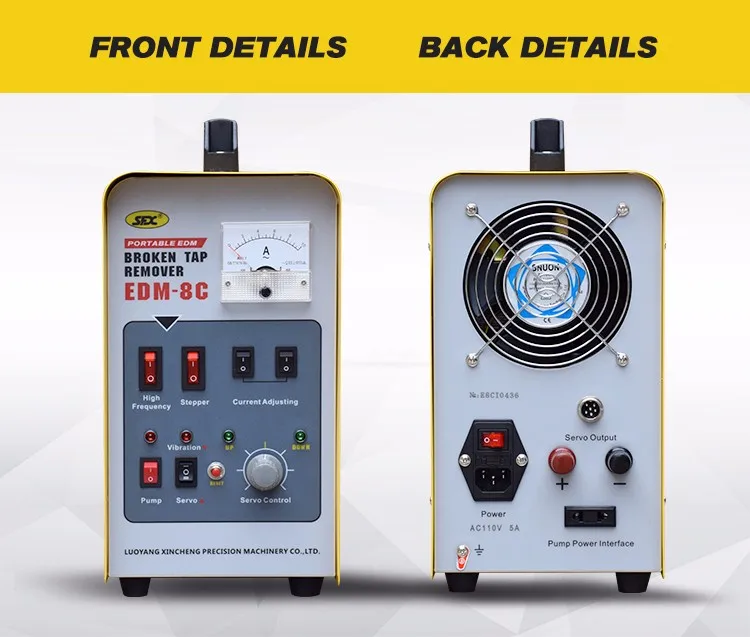

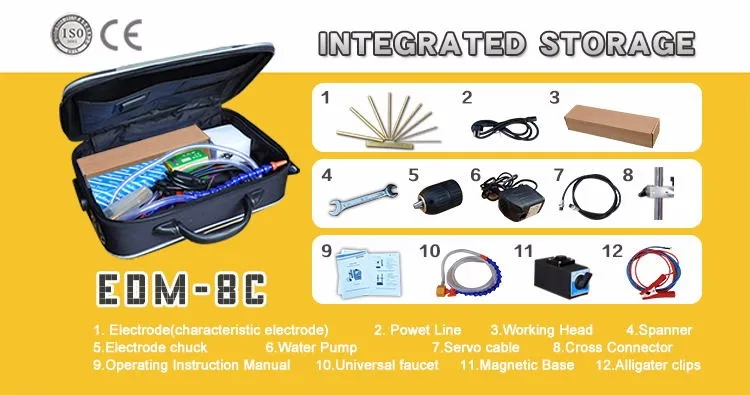

Detailed Images
                       Item
EDM-8C
                       Input Voltage
AC220V/110V±10%
                       Input Power(W)
800W
                       Electrode Chuck Diameter(mm)
0.8-10mm
                       Max Processing Depth of Spindle Servo(mm)
70mm
                       Max Processing Speed(mm/min)
2mm/min
                       Adjustable Current
Stepper
                       Set Depth
Alarm Automatically at certain depth
                       Gross Weight
18kg
                        Power Box Size(mm)
380*160*300mm
                       Power Box Size(mm)Packing Size(mm)
498*308*392mm

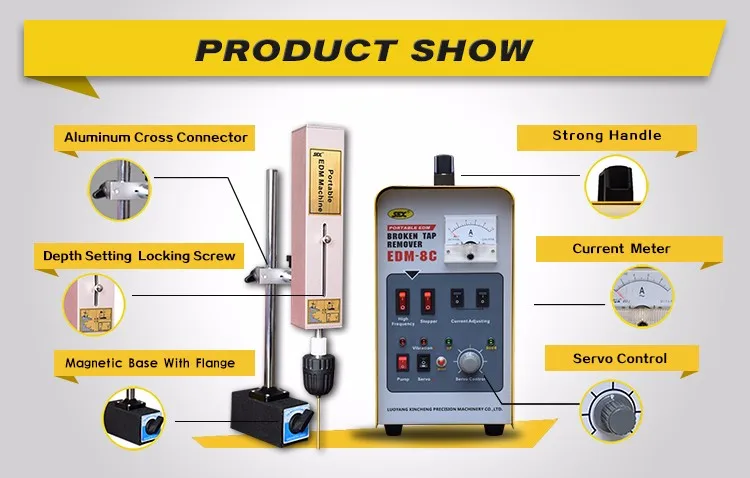

Functions and Features:

1. EDM abide by the principle of spark erosion  to remove broken tools, no direct contact,  thus,  no external  force and damage to the work piece.


2. Excellent Structure: it is convenient to carry due to small size and light weight, and shows its special superiority for large work pieces.Working head is separated from the machine, and can rotate in any direction, which is helpful for complex machining.

3. Convenient Operation: The magnetic base can attract on work pieces to finish processing easily.

4. Accurate Positioning: Cross clamp (optional) or jig can be installed on desktop workbench, which is convenient for fast clamping and precise positioning, and is suitable for batch processing.

5. Easy Maintenance: MCU Controller and Function Modularization are utilized to guarantee the stable performance and easy maintenance.

6. Economical and Convenient: The working liquid is ordinary running  water; power consumption is moderate; the inlet pipe is detachable.

7. Wide Processing Range: broken taps and drills (conductive material) above 3mm (3mm is included).

8. Long Working Hours: a cooling fan installed ensures the ventilation, which keeps the machine working continuously.

Packing & Delivery

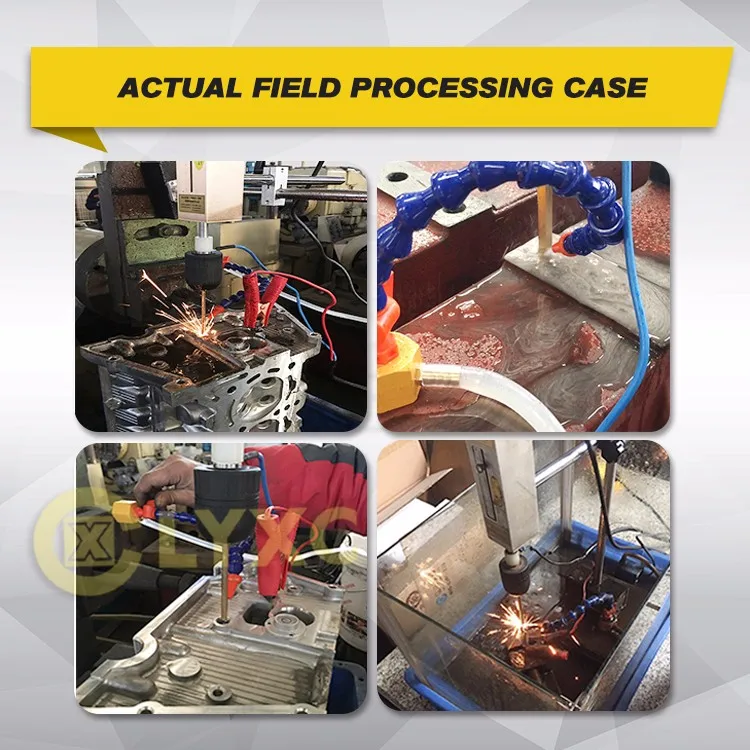

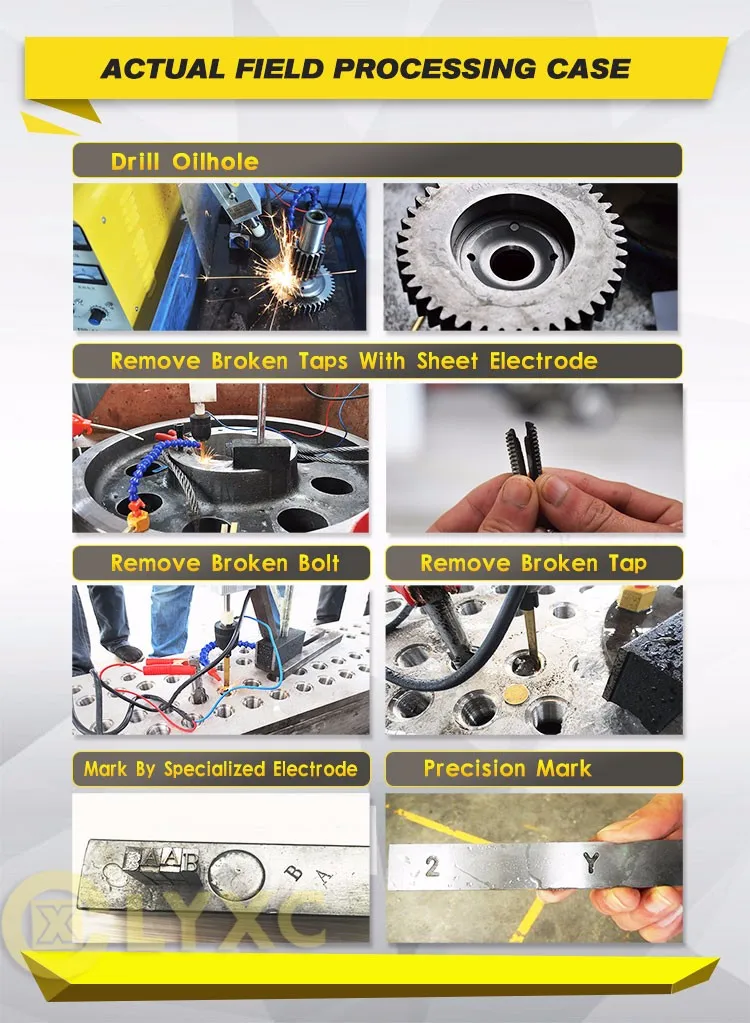

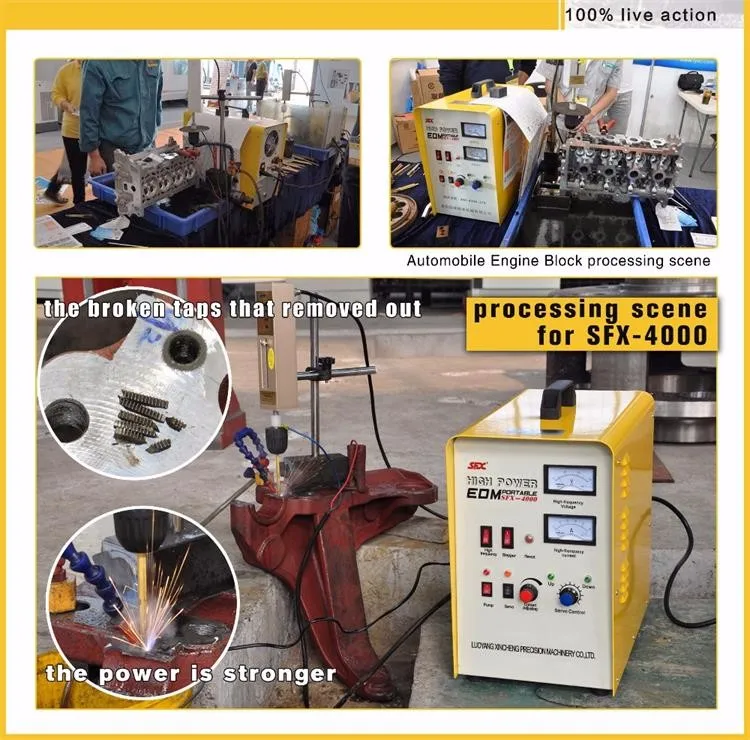

Using Cases
Certifications
FAQ

1. What is the range of broken taps that can be removed?
Answer: M2-M20 broken taps can process.


2. What is the maximum processing depth? Can we remove the broken taps from 100-300mm depth?

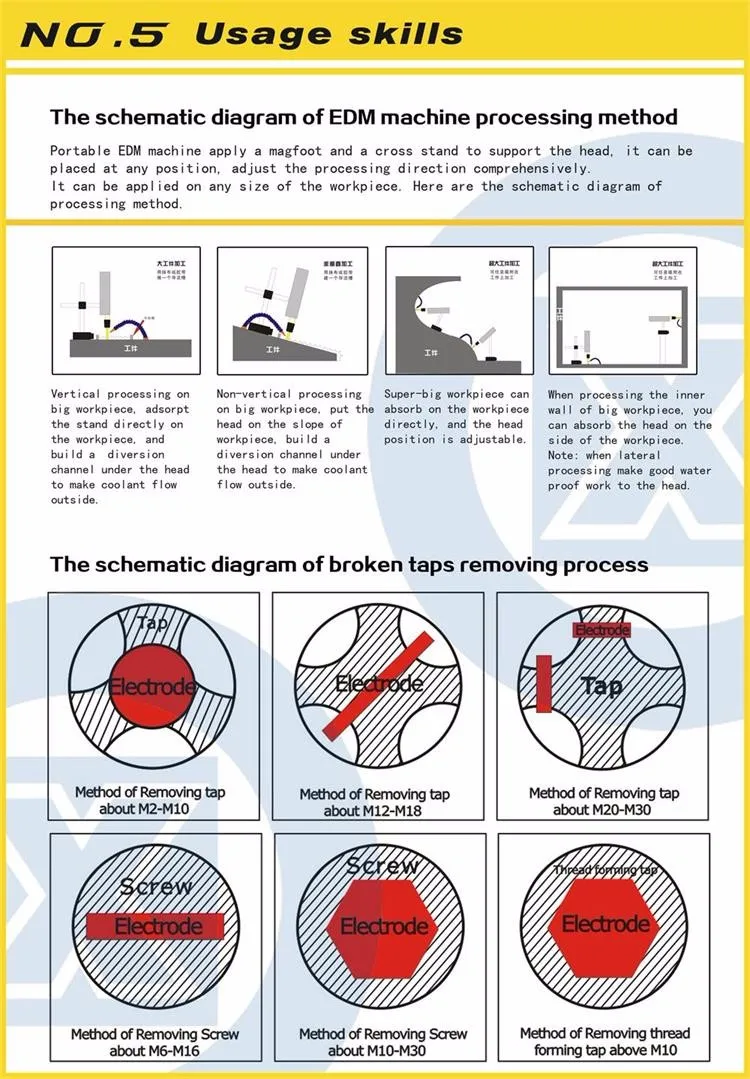

Answer: Our portable EDM's automatic depth is 70mm, theoretically the manual depth can reach 300mm, but the deeper the processing, the slower the speed. If you want to process deeper taps, you can customize the special machine. You can provide pictures or explain the specific situation, we will give you a suitable processing plan.

3. Whether the portable EDM will damage to the work piece during processing?
Answer: As long as the right electrode is selected and according to the correct processing method, it will not damage to the work-piece. The ways to select the electrodes and the processing methods are available on our product manual for your reference.

4. In addition to remove the broken taps, what are the other functions of the portable EDM?
Answer: It is also possible to remove the broken drills, drifts, screws,etc., punch or mark on hardened steel.

5. If the portable EDMcan punch? How about the accurate?
Answer: Only the non-precision holes can be processed. Our EDM machines are not equipped with guide rails or slide tables. The positioning is mainly based on visual inspection, so it is not suitable to process holes with high positioning accuracy and high diameter requirements.

6.Is it possible to remove the broken taps on the side of the work pieces?
Answer: The work head could rotate in any direction, it's no problem process on the side.

7. Will your machine could operate on 110V/60Hz input voltage?
Answer: Sure, the standard equipment is for AC110/220V, 50/60Hz input voltage, vary from different countries requirements.

8. What's your delivery method?
Answer: The machine will be delivered by internatiol express such as TNT, Fedex, DHL, etc



Our Company
Our Service

After-sales Service

The warranty period for Broken Tap Remover is around one year and within this time frame, if there are any technical problems, we would repair them for free including the news parts that needed for the repair.
